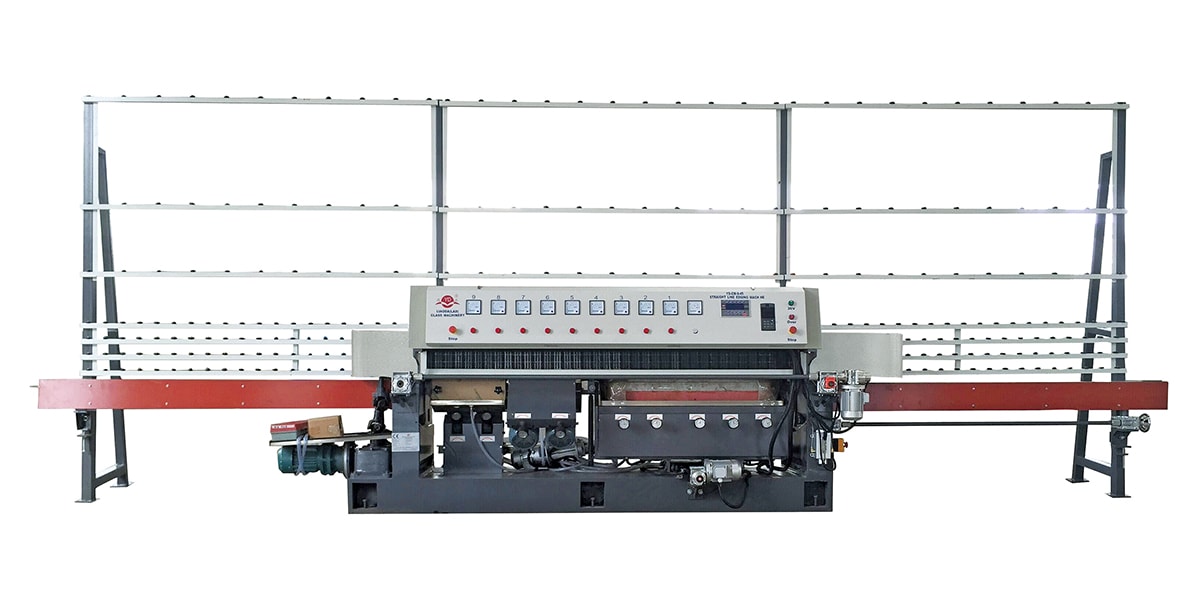

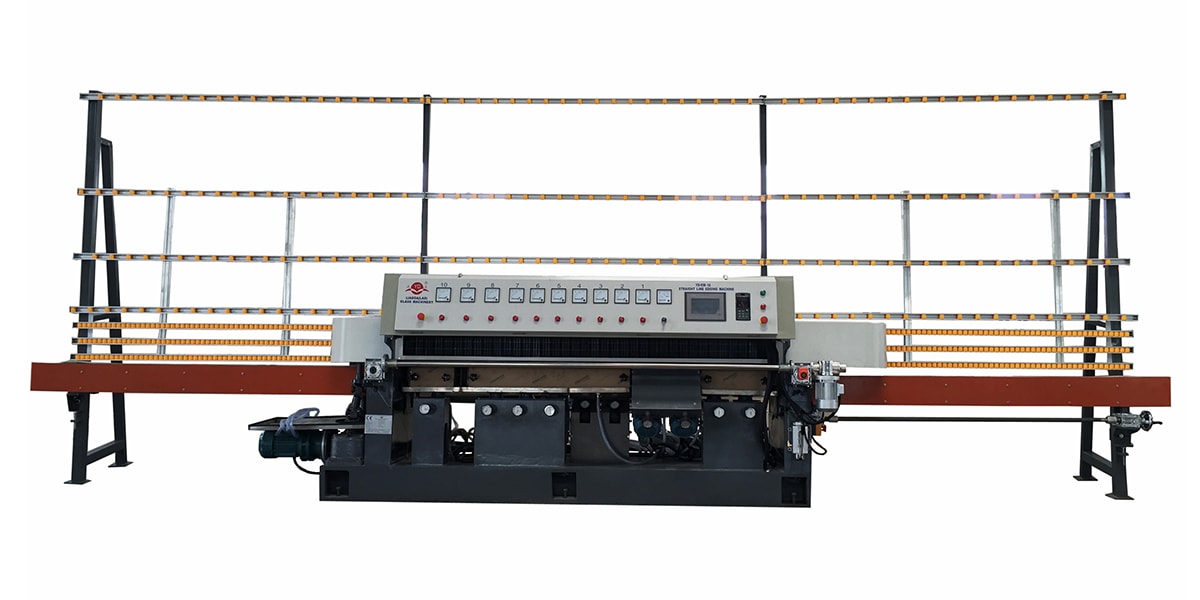

Vertical Straight-Line Edging Machine With 45° Chamfer

Vertical Straight-Line Edging Machine With 45° Chamfer

Application

This machine can process flat glass bottom edge, 45° arris and 0-45° chamfer, with 3 to 6 motors for angle changing for option.

Advantage

YD-EM-9-45(5) Machine has 5 grinding heads for miterring chamfer angle at 0~45 degree.

YD-EM-9-45(3) Machine has 3 grinding heads for miterring chamfer angle at 45 degree.

Manual control or PLC touch screen control system for options.

Chain conveying or bearing conveying system for options.

Machine grinding spindles quantity can be customized (9-13 spindles).



Vertical Straight Line Edging Machine With 45° Chamfer

Vertical Straight Line Edging Machine With 45° Chamfer

Vertical Straight Line Edging Machine With 45° Chamfer

What is a Glass Straight Line Edging Machine?

A Glass Straight Line Edging Machine is an extremely useful tool that many homes and business owners use to straighten their window panes, especially on smaller windows. Some homeowners or business owners actually prefer using this particular device overusing an extension pole for trimming or shaping a window’s edges. The fact of the matter is that you have a lot more options when it comes to selecting and using this type of device than when using an extension pole. In fact, if you already own one of these tools, then you might as well be on your way to completely remodel your entire home!

If you haven’t even heard of a Glass Straight Line Edging Machine, then the first thing that you need to do is read the features of this particular device. As a homeowner or business owner, you need to know the value of this specific piece of equipment before you purchase one. This article will help you discover a lot more about this piece of equipment and how you can use it effectively for your home or business needs.

There are a lot of different types of edging machines that you can purchase. These items range from large and expensive to small and less expensive. One of the most common types of machines that are used for straightening windows is the Glass Straight Line Edging Machine. This particular piece of equipment is used to trim the frame and other portions of a window, making them look professional and appealing. There are many different uses for these devices, including trimming a wood frame of your home to give it a new and cleaner appearance, shaping a window to make it appear square or rectangular, and even using them to straighten a beam of wood to create a straight and consistent bar.

While there are a lot of different uses for a Glass Straight Line Edging Machine, some homeowners and business owners simply choose to use this type of device to straighten their windows themselves. The fact of the matter is that homeowners and business owners alike have been known to spend several hours every weekend working with these pieces of equipment. This type of DIY job is always done by a professional home and business owners.

When purchasing a Glass Straight Line Edging Machine, it is important to find out how many edges it can trim in a single session. This will help you decide how much money you can spend on this particular tool. You also need to determine the total number of edges that you can trim in one session.

It is also important to know the different types of materials that are used to construct the frames for these devices. One type of material is borosilicate glass. Another type of material is the Swedish Mahogany. Then there are other materials such as hardwood, vinyl, and even hard plastic.

When shopping for a Glass Straight Line Edging Machine, it is important to consider the overall quality of the product. This means taking a look at how much money you can expect to pay for this particular device. The last thing you want to do is pay a lot of money for something that will only last you a few months!

While there are a lot of different products available in the market today, the Glass Straight Line Edging Machine is definitely one of the most common pieces of equipment that homeowners and business owners use for trimming windows. There are so many different types of devices and the different designs and prices can make choosing the right one difficult.

Model

YD-EM-9-45(3)

YD-EM-9-45(5)

Total nr. of spindle

9

9

Profile

Flat/arris/45 degree chamfer

Flat/arris/0~45 degree chamfer

Glass thickness (mm)

3~26

3~26

Angle

0/45

0~45

Min. size of glass (mm)

80×80

80×80

Glass speed (m/min)

0.8~6

0.8~6

Power (kw)

18.5

18.5

Outer dimension (m)

6.8×1×2.6

6.8×1×2.6

Weight (kg)

3000

3000
