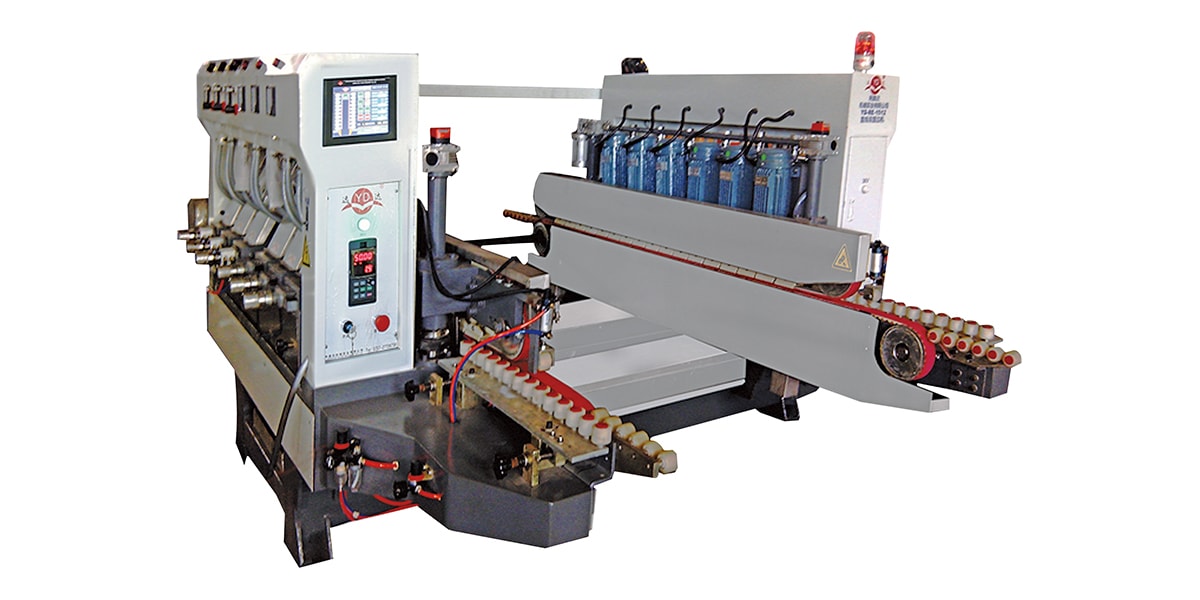

Horizontal Glass Double Edging Machine YD-DR
Application
With the use of special design conveyor system and water circulation system, PLC control, manual and automatic operation, the machine is characterized for compact structure and stable performance.
| Type |
YD-DR-1006 |
YD-DR-1008 |
YD-DR-1512 |
YD-DR-2014 |
YD-DR-2018 |
| Max. Glass Width (mm) |
1000 |
1000 |
1500 |
2000 |
2000 |
| Min. Glass. Size (mm) |
120×120 |
120×120 | 120×120 | 120×120 | 120×120 |
| Total Nr. of Spindle |
6 |
8 |
12 |
14 |
18 |
| Glass Thickness (mm) |
3~20 |
3~20 |
3~20 |
3~20 |
3~20 |
| Glass Speed |
0.8~8 |
0.8~8 |
0.8~8 |
0.8~8 |
0.8~8 |
| Power (kw) |
13 |
21 |
27 |
30 |
30 |
| Outer Dimension (m) |
3.3×2.4×1.8 |
3.5×2.4×1.8 |
3.8×2.9×1.8 |
4.0×3.8×1.8 |
4.0×4.2×1.8 |
| Weight (kg) |
2600 |
2800 |
3500 |
4000 |
4500 |
Related Products
Vertical Round Glass Grinding Machine YD-RE

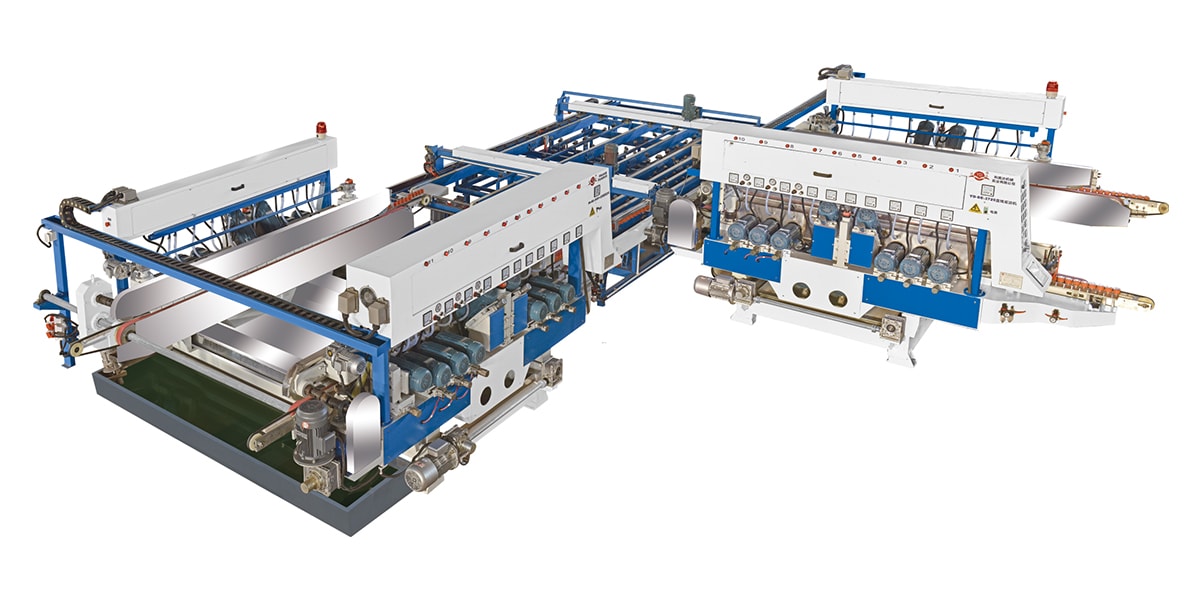

Fully Automatic Glass Double Edger Machine Line
Vertical Glass Straight Line Edging Machine YD-EM
Vertical Mirror / Glass Edge Beveling Machine YD-BM
Irregular Shape Edging Machine YD-100-2000B (Out and Inner Curve)
Horizontal Glass Double Edging Machine YD-DR

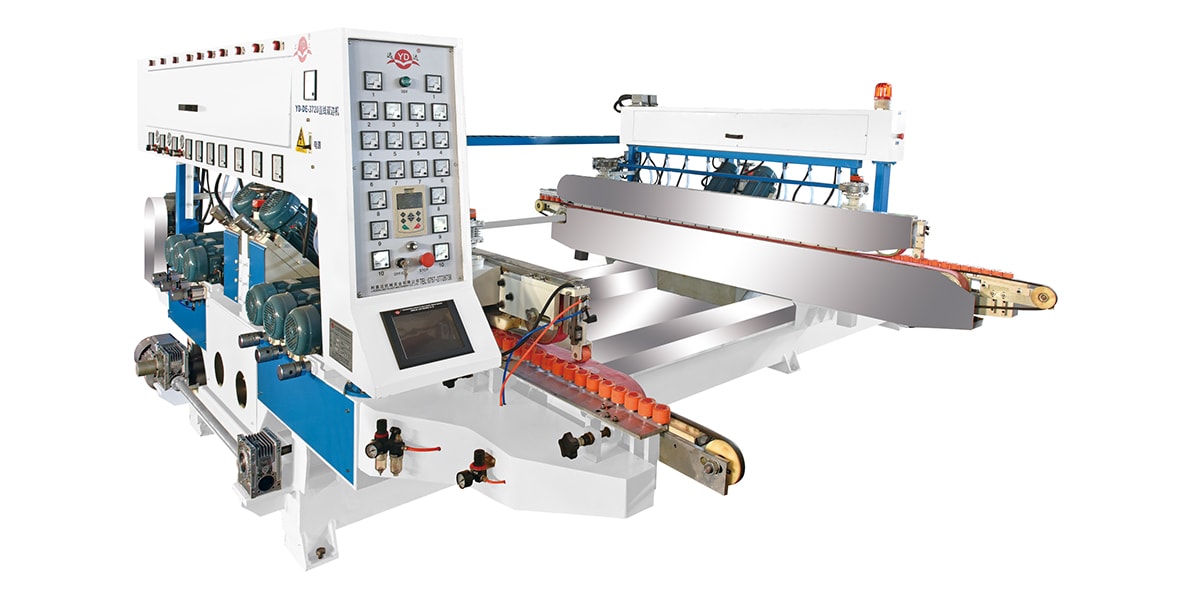

Horizontal Glass Double Edger Machine YD-DE
